VF5

Code: 167200-05
Price: Contact
◆ Funnel capacity: 15 ml
◆ Flask capacity: 125ml
◆ Filter diameter: 25 mm
◆ Effective filtration area: 3.2cm2

Reviews:

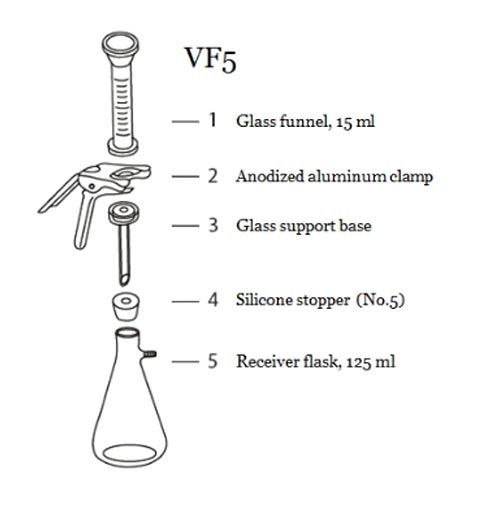

Complete Set Include:
◆ 15 ml Glass filter holder
◆ Silicone stopper (No.5)
◆ 125 ml Receiver flask

Applications:
Ideal for small volume vacuum filtration for biological analysis or particulate contamination analysis.

Ordering Information:VF5
◆ 167200-05　VF5, 25mm Glass Microanalysis Filtration Set:
◆ 167120-32　15 ml Glass filter holder
◆ 167220-15　Glass funnel, 15 ml
◆ 167240-05　Anodized aluminum clamp
◆ 167230-04　Glass support base
◆ 167110-05　Silicone stopper (No.5)
◆ 167250-05　125 ml Receiver flask

Specification:
◆ Material:
　Filter funnel - Borosilicate glass
　Funnel support base - Borosilicate glass
　Membrane support - Sintered glass
　Clamp - Anodized aluminum
　Stopper - Silicone rubber (No.5)
　Receiver flask - Borosilicate glass
◆ Specification:
　Funnel capacity： 15 ml
　Flask capacity： 125mm
　Filter diameter ： 25 mm
　Effective filtration area: 3.1 cm²
　Hose barb : 5/16 inch
