VF14

Code: 167200-14
Price: Contact
◆ Funnel capacity: 300 ml
◆ Flask capacity: 1000ml
◆ Filter diameter: 47 mm
◆ Effective filtration area: 9.6cm2

Reviews:


Filtration Apparatus Features

  • Save Time
    VF 14 can filtrate and store solution directly in GL45 storage bottle without the need of being transferred from the filtering flask.
  • Suitable for GL45 storage bottle
    Unique filtration adaptor design can connect with GL45 storage bottle (1000 ml, 2000 ml, 5000 ml etc.)
  • SS support screen
    The stainless steel filter support screen can be reused after simple cleaning and won’t get clogged over time like traditional glass support base.
  • Patent Awarded
    GL 45 Filtration Adaptor has been awarded a patent.

Filtration Apparatus Applications

  • Solvent purification and solvent filtration, such as solvent, mobile phase for HPLC, GC and AA analysis.

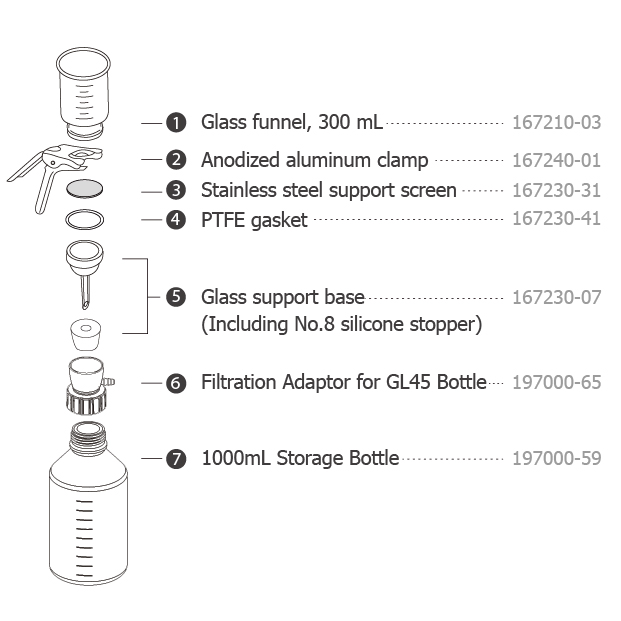

Filtration Apparatus Ordering Information

Part Number Description
167200-14 VF 14, Glass Filtration Set (1-5)

167120-31

Glass filter holder 300 mL (1-3)

167210-03

(1) Glass funnel, 300mL

167240-01

(2) Aluminum clamp, 47mm
167230-31 (3) SS support screen
167230-41 (4) PTFE gasket
167230-07 (5) Glass support base ( including No.8 silicone stopper)
197000-65 (6) Filtration adaptor for GL45 bottle
197000-59 (7) 1000 ml Laboratory glass bottle
