VF7

Code: 167200-07
Price: Contact
◆ Funnel capacity: 300 ml
◆ Flask capacity: 1000ml
◆ Filter diameter: 47 mm
◆ Effective filtration area: 9.6cm2

Reviews:


Complete Set Include:
◆ 300 ml Glass filter holder
◆ Silicon stopper (No.8)
◆ 1000 ml Receiver flask
◆ Silicone fixing sucker

Feature:
The stainless steel screen with PTFE seal only needs a simple cleaning can be reused.

Applications:
Ideal for solvent purification and general filtration for microbiology, suspended solid analysis etc..

Ordering Information:

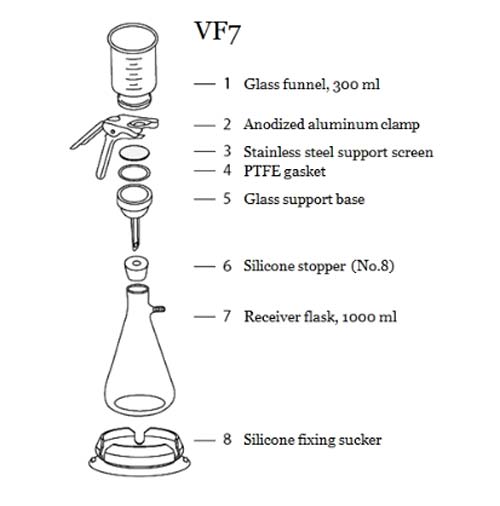

◆ 167200-07　VF7, 47 mm Glass Filtration Set:
◆ 167120-33　300 ml Glass filter holder
◆ 167210-03　Glass funnel, 300 ml
◆ 167240-01　Anodized aluminum clamp
◆ 167230-31　Stainless steel support screen
◆ 167230-41　PTFE gasket
◆ 167230-07　Glass support base
◆ 167110-16　Silicone stopper (No.8)
◆ 167250-03　Receiver flask, 1000 ml
◆ 167200-45　Silicone fixing sucker

Specification:
◆ Material：
　Filter funnel - Borosilicate glass
　Funnel support base - Borosilicate glass
　Membrane support - S.S. screen with
　PTFE seal
　Clamp - Anodized aluminum
　Stopper - Silicone rubber (No.8)
　Receiver flask - Borosilicate glass
◆ Specification :
　Funnel capacity： 300 ml
　Flask capacity： 1000mm
　Filter diameter ： 47 mm
　Effective filtration area： 9.6 cm²
　Hose barb : 5/16 inch
