BỘ LỌC THỦY TINH 90mm - VF10 | BỘ LỌC 1000ml [167200-10]

VF10

Code: 167200-10

Price: Contact

◆ Funnel capacity: 1000 ml
◆ Flask capacity: 4000ml
◆ Filter diameter: 90mm
◆ Effective filtration area: 40.6cm²

Reviews:

Complete Set Include:
◆ 1000 ml Glass filter holder
◆ Anodized aluminum clamp
◆ 4000 ml Ground joint flask

Feature:
The stainless steel screen with PTFE seal only needs a simple cleaning can be reused.

Applications:
Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.

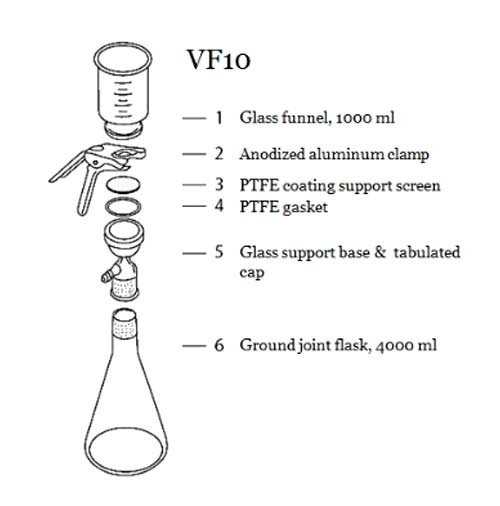

Ordering Information: vf10

◆ 167200-10　VF10, 90 mm Glass Filtration Set:
◆ 167120-35　1000ml Glass filter holder
◆ 167210-10　Glass funnel, 1000 ml
◆ 167240-02　Anodized aluminum clamp
◆ 167230-33　PTFE coating support screen
◆ 167230-43　PTFE gasket
◆ 167230-09　Glass support base&tubulated cap
◆ 167250-06　Ground joint flask, 4000 ml

Specification:
◆ Material：
　Filter funnel - Borosilicate glass
　Funnel support base - Borosilicate glass
　Membrane support - Copper support
screen with PTFE coating
　PTFE seal
　Clamp - Anodized aluminum
　Receiver flask - Borosilicate glass
◆ Specification :
　Funnel capacity： 1000 ml
　Flask capacity： 4000mm
　Filter diameter ： 90 mm
　Effective filtration area： 40.6 cm²
　Hose barb : 5/16 inch
