VF10

Code: 167200-10
Price: 13,030,000 đ
◆ Funnel capacity: 1000 ml
◆ Flask capacity: 4000ml
◆ Filter diameter: 90mm
◆ Effective filtration area: 40.6cm2

Reviews:


Complete Set Include:
◆ 1000 ml Glass filter holder
◆ Anodized aluminum clamp
◆ 4000 ml Ground joint flask

Feature:
The stainless steel screen with PTFE seal only needs a simple cleaning can be reused.

Applications:
Ideal for the purification of organic, corrosive liquid such as solvent (mobile phase) for HPLC analysis.

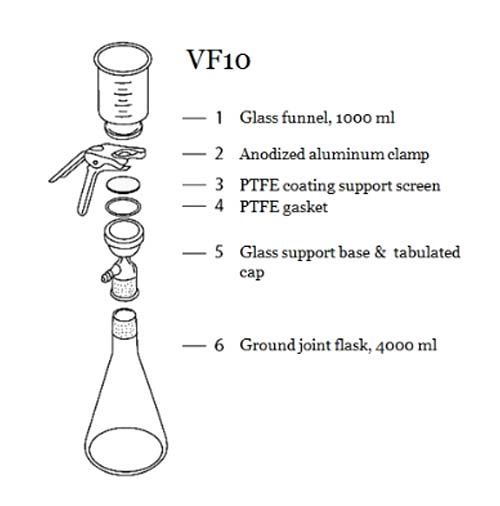

Ordering Information:vf10
◆ 167200-10 VF10, 90 mm Glass Filtration Set:
◆ 167120-35 1000ml Glass filter holder
◆ 167210-10 Glass funnel, 1000 ml
◆ 167240-02 Anodized aluminum clamp
◆ 167230-33 PTFE coating support screen
◆ 167230-43 PTFE gasket
◆ 167230-09 Glass support base&tubulated cap
◆ 167250-06 Ground joint flask, 4000 ml

Specification:
◆ Material:
 Filter funnel - Borosilicate glass
 Funnel support base - Borosilicate glass
 Membrane support - Copper support
   screen with PTFE coating
 PTFE seal
 Clamp - Anodized aluminum
 Receiver flask - Borosilicate glass
◆ Specification :
 Funnel capacity: 1000 ml
 Flask capacity: 4000mm
 Filter diameter : 90 mm
 Effective filtration area: 40.6 cm²
 Hose barb : 5/16 inch
